Introducing 5-in-1 Tablet Hardness Tester PTB 430
Introducing 5-in-1 Tablet Hardness Tester PTB 430

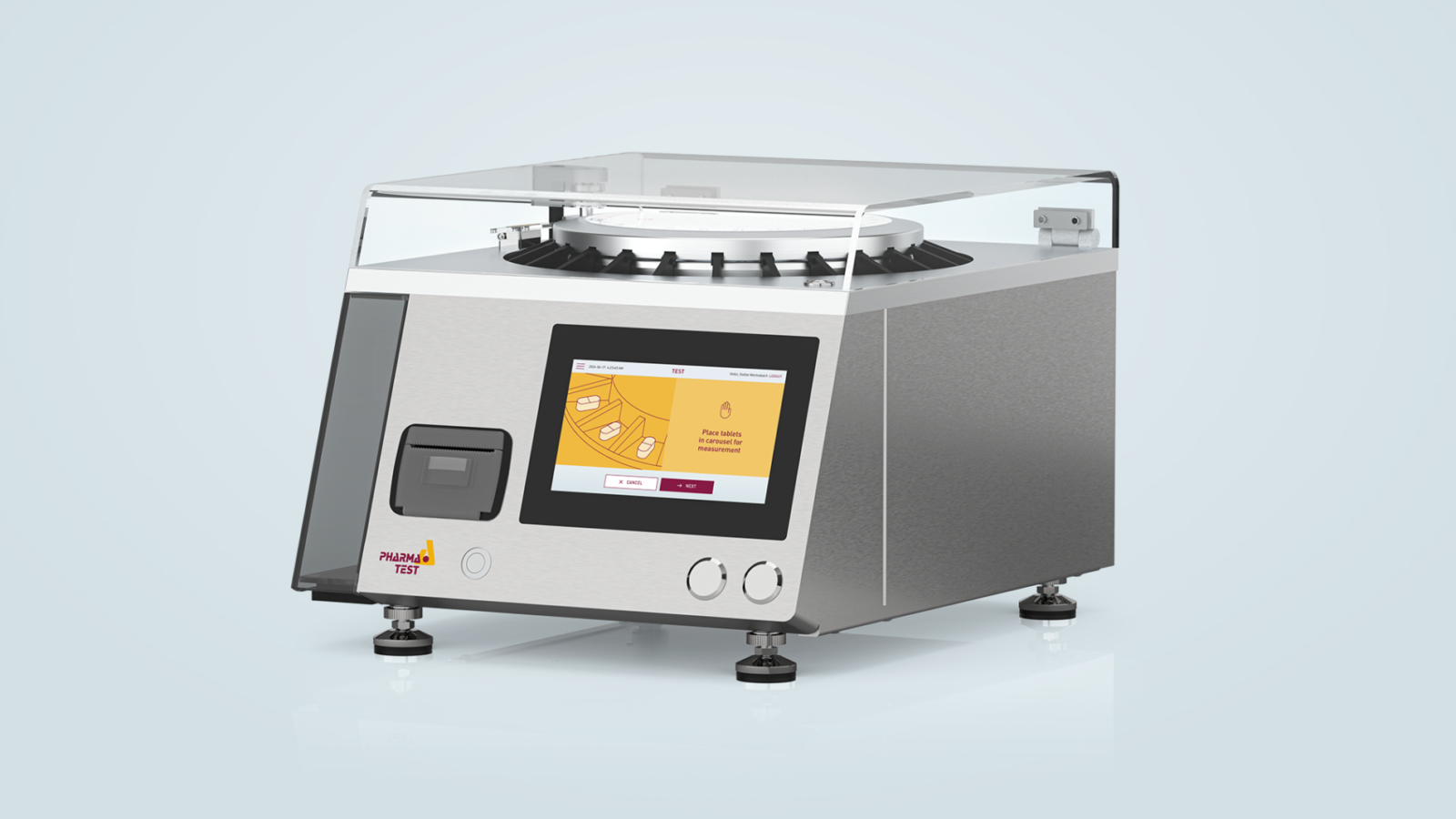

We would like to introduce to you the new 5-in-1 tablet hardness tester PTB 430. PTB 430 features a carousel for up to 20 samples and can measure up to five distinct parameters of a sample. PTB 430 is situated in between PTB 330 and PTB 500 NICE. PTB 430 features the carousel for 20 samples like PTB 500 NICE but without the audit trail and other expanded software features like electronic signatures. The PTB 430 software is instead based on PTB 330 offering a similar user interface and feature set.
1. Carousel
2. Measurement of five parameters
3. User interface
4. PTB 430 model comparison
1. Carousel
PTB 430 features a carousel with 20 chambers for the samples. Alternatively, a carousel with ten (10) larger chambers is available to make the manual handling for alignment of large samples more convenient.
2. Measurement of Five Parameters
The carousel transports the samples from the weight station to the thickness station and the combined width, diameter (or length) and hardness testing station. For weight measurement PTB 430 features an integrated Sartorius analytical balance cell (optional).
3. User Interface
PTB 430 features a large, 7” backlit color touch screen with a state-of-the-art graphical user interface (GUI).
4. PTB 430 Model Comparison
Below is a model comparison of PTB 430 with its most comparable tablet hardness testers PTB 330 and PTB 500 NICE. Its software and user interface is based on PTB 330 software:
| Parameters | Max. hardness ranges | Weight measurement | Sample introduction | Integrated printer | User & method management | Audit trail | |
| PTB 330 | 5, Hardness, Thickness, Width, Diameter, Weight | 300N, 500N, 1,000N | External balance | Individual | Yes | Yes, 100 users, 100 methods | No |
| PTB 430 | 5, Hardness, Thickness, Width, Diameter, Weight | 300N, 500N, 1,000N | Internal balance (option) | Carousel | Yes | Yes, 100 users, 100 methods | No |
| PTB 500 NICE | 5, Hardness, Thickness, Width, Diameter, Weight | 300N, 500N, 1,000N | Internal balance | Carousel | Yes | Yes, unlimited | Yes |
PTB 330, PTB 430 and PTB 500 NICE tablet hardness tester model comparison
