UGD Universal Gear Drive
UGD Universal Gear Drive transforms mechanical motion from the UAM to a variety of flanged attachments.
UGD Universal Gear Drive
UGD
Universal Gear Drive
The UGD Universal Gear Drive is used to transform mechanical motion from the UAM Universal Motor Drive to a variety of flanged attachments presented in the scope of the Pharmag Pilot Plant System.
Operation Mode
Through this transformation, the UGD Universal Gear Drive reduces the drive speed at a ratio of 10:1 while simultaneously increases the torque (x10) necessary for performing processes using the attachments, such as: Powder Blenders (Cube, Double Cone, V-Blender), Mini Ball Mill, Pelletizer and Coating Pan. The UGD Universal Gear Drive can also adjust the operation angle into a range of approximately 90°.
Optimal Arrangement

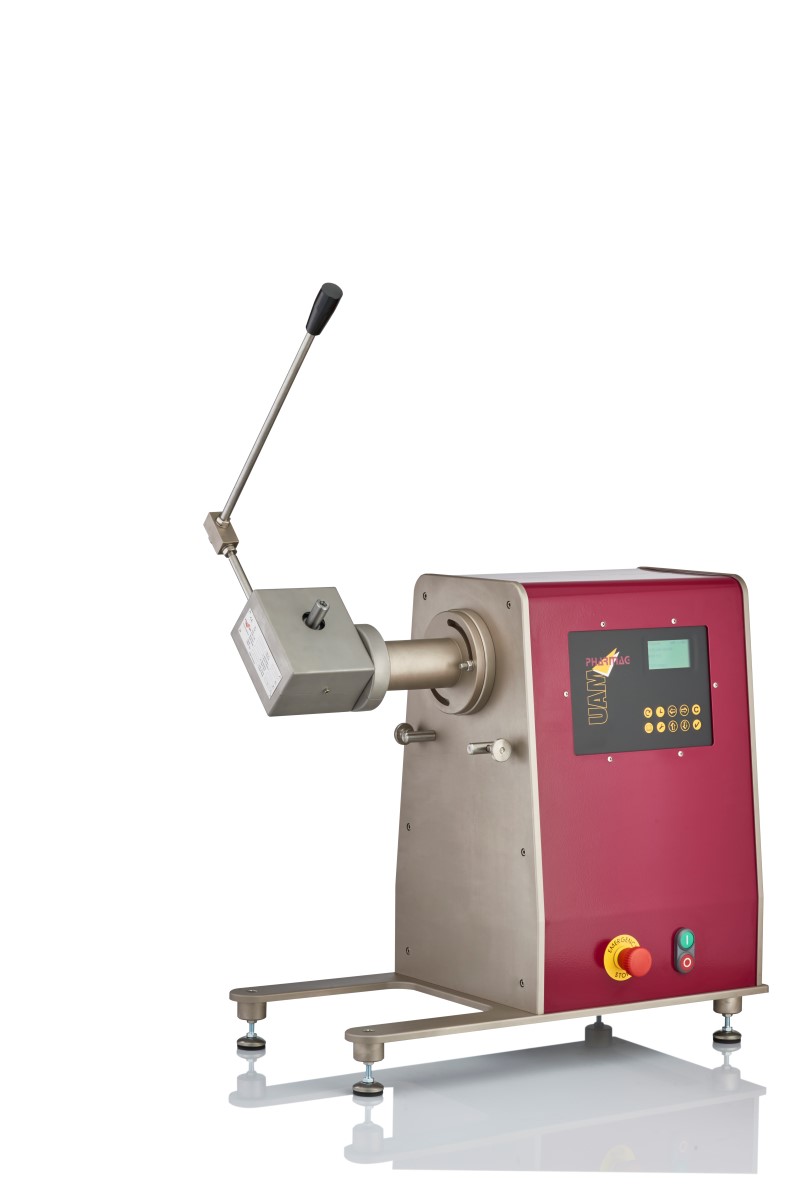

Unlike some similar devices, the UGD Universal Gear Drive has been designed in such a way, so that the operator can always view the ongoing process when any attachment is been mounted on the front of the UAM Universal Motor Drive.
Features
- Versatile
- Optimal access
- Smart construction
Advantages
- Proper for many attachments (blenders, coating pans, pelletizers etc.)
- 360° viewpoint. adjustable angle
- Easy application, service & maintenance
Technical Specifications
| Parameter | Specification |
| Range of operation angle | Approx. 90° |
| Gear reduction ratio | 1:10 |
| Rotation speed | 5-45 rpm |
| Max. torque when connected to UAM | Approx. 60 Nm |
| Instrument dimensions | Approx. 240 x 160 x 200 mm (width x depth x height) |
| Packaging dimensions | Approx. 410 x 410 x 410 mm (width x depth x height) |
| Net / Gross weight | Approx. 7 / 9 kg |
We reserve the right to make technical changes without any prior notice.
