TRM-S

Triple roller mill for homogenization during preparation of viscous preparations.

TRM-S

Triple Roller Mill

The TRM-S Triple Roller Mill is used in the homogenization during preparation of ointments, creams, pastes, dough’s and other viscous preparations. The TRM-S Triple Roller Mill can be directly attached to the UAM Universal Motor Drive, which provides a flexible stepless speed tuning.

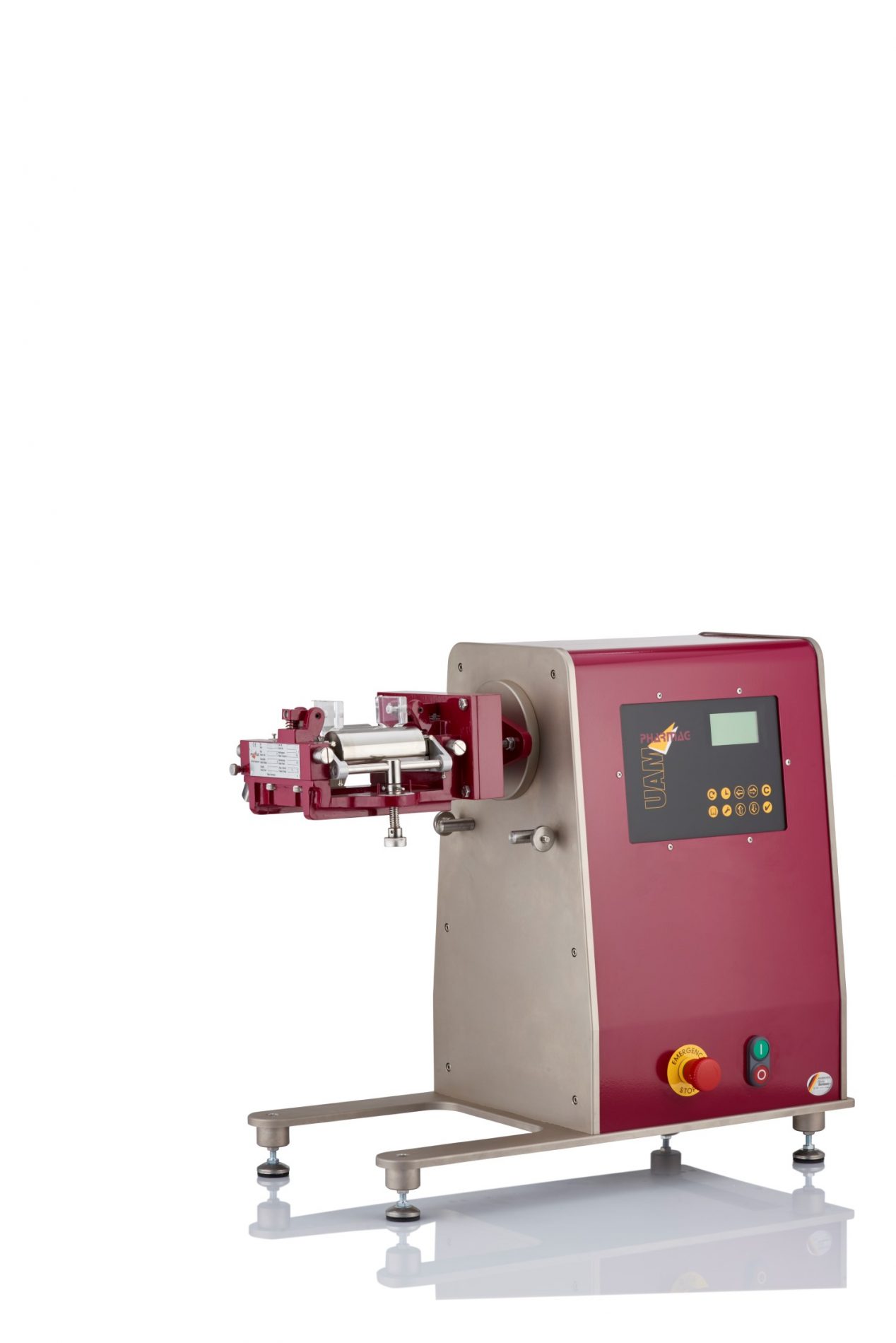

TRM-S attached directly to UAM
TRM-S attached directly to UAM view from above

TRM-S attached directly to UAM

1 / 2

Operation Mode

The rolling action is generated by the contra rolling motion of three robust rollers made of high quality stainless steel L316. The gaps between the rollers are adjustable via a single knurled screw, which is scaled from 0 to 4. Minimum gap between rollers is 0.05, while the maximum is 0.3 mm. The two outer rollers are spring-supported to eliminate any possibility of damaging the rollers or damaging the entire operation mechanism. All contact parts are made of GMP Compliant materials and can be sterilized in accordance with GMP.

Features

  • Powerful & compact
  • Easy to serve and clean
  • GMP compliant

Advantages

  • Effective for squeezing & homogenizing of pastes
  • User friendly
  • Corrosion resistant, medical & food grade contact parts

Application Specifications

Parameter Specification
Operation principle Film multiple squeezing & homogenizing through 3 rollers
Process range Homogenizing of pastes, ointments and highly viscous preparations (solid/liquid) (liquid/liquid)
Feed characteristics   Ointments, creams, and pastes
Range of applications Pharmaceutical, herbal & alternative medicine, chemicals & fine chemicals, food, agriculture, cosmetics and detergents, paints & pigments

Technical Specifications

Parameter Specification
Max. output 12 kg/h.

Depends on feed properties, instrument and process parameters

Gap range between rollers 0.05 – 0.30 mm
Rotation speed 15-125 rpm
Instrument dimensions Approx. 260 x 160 x 270 mm (width x depth x height)
Packaging dimensions Approx. 410 x 510 x 410 mm (width x depth x height)
Net / Gross weight Approx. 11 / 14 kg

We reserve the right to make technical changes without any prior notice.

Included in the Standard Scope of Supply

  • TRM-S (part. no. 40-01187)
